It's all about the much loved and much hated SOLIDTUBE
"The SolidTube has the trademark AKG sound and a price within the reach of any project studio. Considering the price point, I was interested in learning what corners, if any, had been cut. I’m happy to report: there are none. Bravo! " (from review : http://www.uneeda-audio.com/solidtub.htm) |
Specifications
| Polar pattern |
cardioid |
| Frequency range |
20 to 20,000 Hz |
| Sensitivity |
20 mV/Pa (-34 dBV) |
| Max. SPL |
130/145 dB (THD=3%) |
| Equivalent noise level (CCIR 468-3) |
30 dB |
| Equivalent noise level |
20 dB-A |
| Signal/noise ratio (A-weighted) |
20 dB-A |
| Preattenuation pad |
20 dB, switchable |
| Bass filter |
12 dB/octave at 100 Hz |
| Impedance |
200 ohms |
| Recommended load impedance |
>1000 ohms |
| Supply voltage |
through supplied N-Solid power supply |
| Current consumption |
through supplied N-Solid power supply |
| Connector |
6-pin XLR |
| Cable |
10 m (33 ft.) |
| Finish |
silver gray |
| Dimensions |
63.5/57 dia. x 219 mm / 2.5/2.2 x 8.6 in. |
| Net weight |
920 g / 2 lbs. |
| Shipping weight |
5 kg / 11 lbs. |
| Patent(s) |
Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488) |
|
U can modify tour solidtube !!!! Did u know ?
"Remove the internal pop filter and never look back. Also consider changing the tube ." "Also mute the body with adhesive velcro, this will reduce any sympathetic resonances." (both taken from : http://homerecording.com/bbs/showthread.php?t=103613&highlight=modification+solidtube)
|

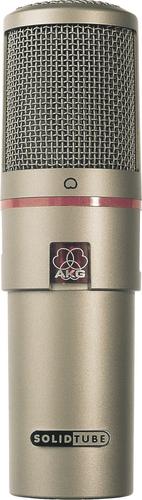

Solidtube
"Vacuum tube large-diaphragm microphone
Cardioid polar pattern for multiplicity of applications
Exceptionally natural, warm sound
Tube sound enriches digital recordings
Complete with many useful accessories and aluminum carrying case" "The AKG SolidTube, the flagship of the Project Studio Line, is the first microphone that combines the sound of classic vacuum tube technology and the benefits of advanced solid state componentry at an affordable price. Mechanical ruggedness, high SPL capability, and low self noise are as natural SolidTube fea-tures as its warm tube sound. The heart of the SolidTube is the ECC 83 (12AX7) vacuum tube. It provides excellent transfer characteristics and is readily available from musical instrument dealers carrying spare parts for guitar amps. A ground lift switch on the power supply eliminates unexpected ground loops quickly and easily. Standard accessories include a spider type shock mount, pop screen, power supply, cable, and strong carrying case. Tube microphones are very popular for their warm sound. The SolidTube emphasizes even harmonics and adds low-level distortion that the ear perceives as an enhancement to the sound."
(from: http://www.akg.com/products/powerslave,mynodeid,186,pid,218,id,218,_language,EN.html)
|

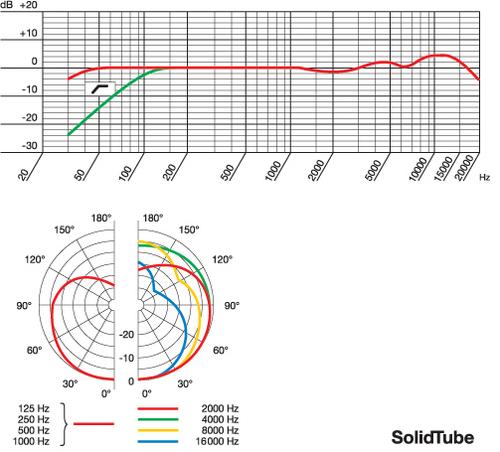

Graphical data
|
